55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Λεπτομέρειες:
| Τόπος καταγωγής: | Guangdong, Κίνα |
| Μάρκα: | JINTONG |
| Αριθμό μοντέλου: | JTT-550R |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 κομμάτι |
|---|---|
| Τιμή: | $19,000-21,000 / piece |
|
Λεπτομερής ενημέρωση |
|||
| Ικανότητα Πλαστικοποίησης: | 150 g/s | Ύψος φορμών: | 160 - 300 mm |
|---|---|---|---|
| Αριθμός συστημάτων εκτίναξης: | 2 | Εκτοξευτής: | 60 mm |
| Δύναμη εκτοξευτή: | 1.8 kN | Θεωρητικός όγκος βολής: | 170 cm3 |
| Ποσοστό έγχυσης: | 113 g/s | Βάρος έγχυσης: | 141 γρ |
| Βιδωτή ταχύτητα: | 0 - 215 στροφές ανά λεπτό | Διάμετρος βιδών: | 40 mm |
| Αναλογία βιδών L/D: | 22 | Απόσταση μεταξύ των ράβδων γραβάτας: | 510 χιλ. |
| Βάρος: | 2400 κιλά | Open Stroke: | 540 χλστ |
| Εξουσία: | 12,8 KW | ||
| Επισημαίνω: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Περιγραφή προϊόντων
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description

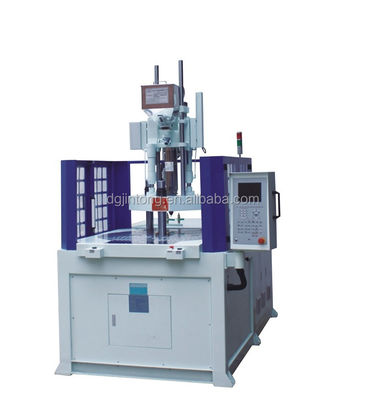

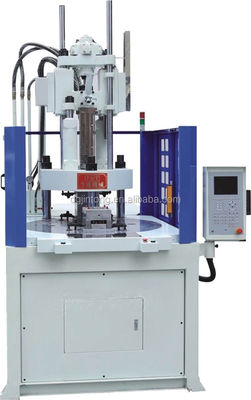

Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
