Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Λεπτομέρειες:
| Τόπος καταγωγής: | Guangdong, Κίνα |
| Μάρκα: | JINTONG |
| Αριθμό μοντέλου: | JTT-2500R |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 κομμάτι |
|---|---|
| Τιμή: | $65,600-67,650 / piece |
|
Λεπτομερής ενημέρωση |
|||
| Δύναμη σύσφιξης: | 250T | Μέγιστο βάρος έγχυσης: | 836G |
|---|---|---|---|
| Διάμετρος βιδών: | 55 60 65 mm | Πίεση έγχυσης: | 2087 1754 1494 kg/cm2 |
| Θεωρητικός όγκος βολής: | 929 cm3 | Ποσοστό έγχυσης: | 285 cm3/sec |
| Κτύπημα βιδών: | 280 χιλ. | Βιδωτή ταχύτητα: | 152 σ.α.λ. |
| Χωρητικότητα θέρμανσης: | 20 kW | Δύναμη ανοίγματος: | 26.4 τόνοι |
| Μίν υψόμετρος μούχλας: | 300 mm | Άνοιξη: | 450 mm |
| μέγιστο ανοιχτό ημερήσιο φως: | 750 χιλ. | Περιστροφική επιτραπέζια διάμετρος: | 1800 χιλ. |
| Δύναμη εκτοξευτή: | 4,6 τόνοι | ||
| Επισημαίνω: | 250T Clamping Force Vertical Injection Molding Machine,929 cm³ Theoretical Shot Volume Rotary Table Vertical Injection Molding Machine,285 g/s Injection Rate Vertical Plastic Injection Molding Machine |
||
Περιγραφή προϊόντων
Vertical Rotary Injection Molding Machine JTT-2500R
Clamping Force: 250T
Max Injection Weight: 836g
Vertical clamping and injection system with servo motor controlled rotary table. Features forward-rotating, reverse-rotating, and forward/reverse alternative rotating modes. Available in 2 stations, 3 stations, or multi-station configurations (one upper die with two or four lower dies) for efficient insert part operation and enhanced productivity.
Technical Specifications
| Model: JTT-2500R | ||
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 55 | 60 | 65 |
| Injection Pressure | kg/cm² | 2087 | 1754 | 1494 |
| Theoretical Shot Volume | cm³ | 665 | 792 | 929 |
| Max Shot Weight | g | 599 | 713 | 836 |
| Injection Rate | cm³/sec | 202 | 243 | 285 |
| Screw Stroke | mm | 280 |
| Screw Speed | rpm | 152 |
| Heating Capacity | kw | 20 |
| Clamping System | ||
| Clamping Force | tons | 250 |
| Opening Force | tons | 26.4 |
| Min Mold Height | mm | 300 |
| Opening Stroke | mm | 450 |
| Max Open Daylight | mm | 750 |
| Mold Dimension | mm | 850×450 |
| Rotary Table Diameter | mm | 1800 |
| Ejector Force | tons | 4.6 |
| Ejector Stroke | mm | 100 |
| Other Specifications | ||
| Motor Power | kw | 33.8 |
| Machine Dimension | m | 3.8×2.55×4.12 |
| Machine Weight | tons | 13.6 |
Main Features
- Vertical clamping and vertical injection system
- Adjustable clamping force, injection weight, and shot speed to meet production requirements
- Multiple station configurations (2, 3, or multi-station) with one upper die and multiple lower dies for efficient insert part operation

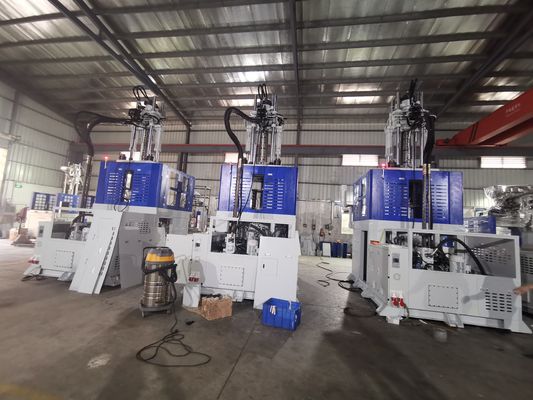

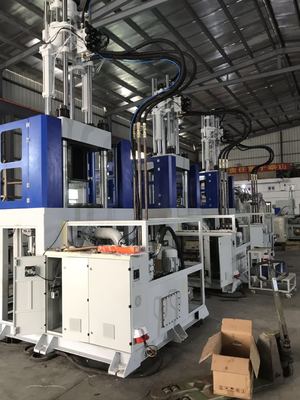

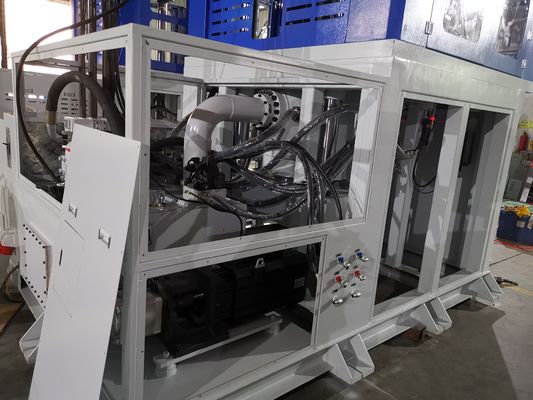

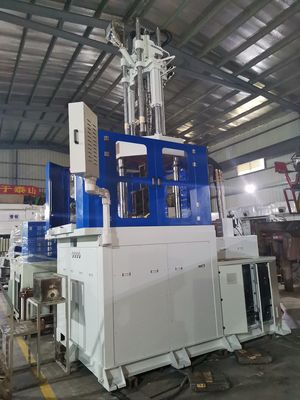

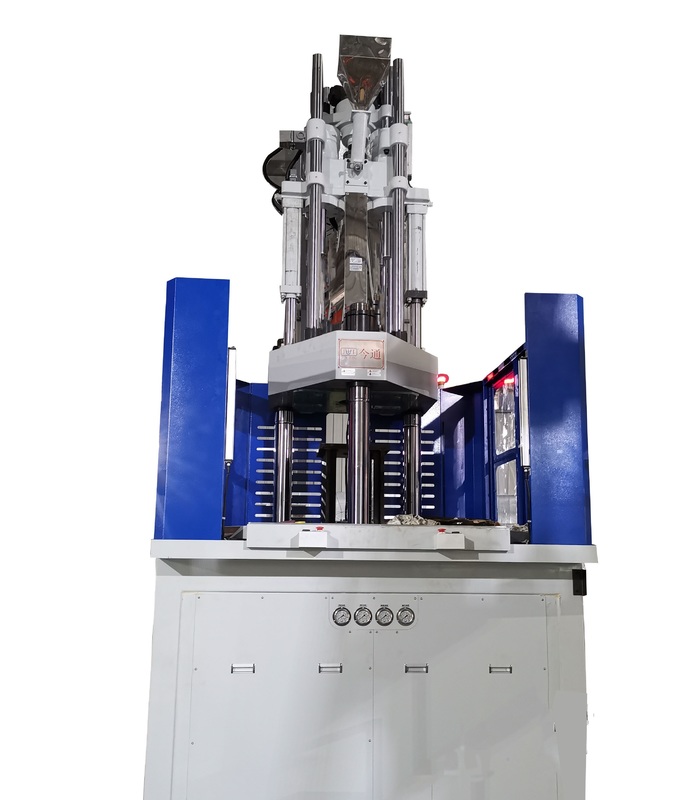

Product Images
Product Advantages
Energy-saving: 30% more efficient than similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
Low heating: Saves at least 55% cooling water compared to similar products
Low noise: Optimized motor operation with imported bearing and oil pump reduces noise by 15-20db
Precision: Complete closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
